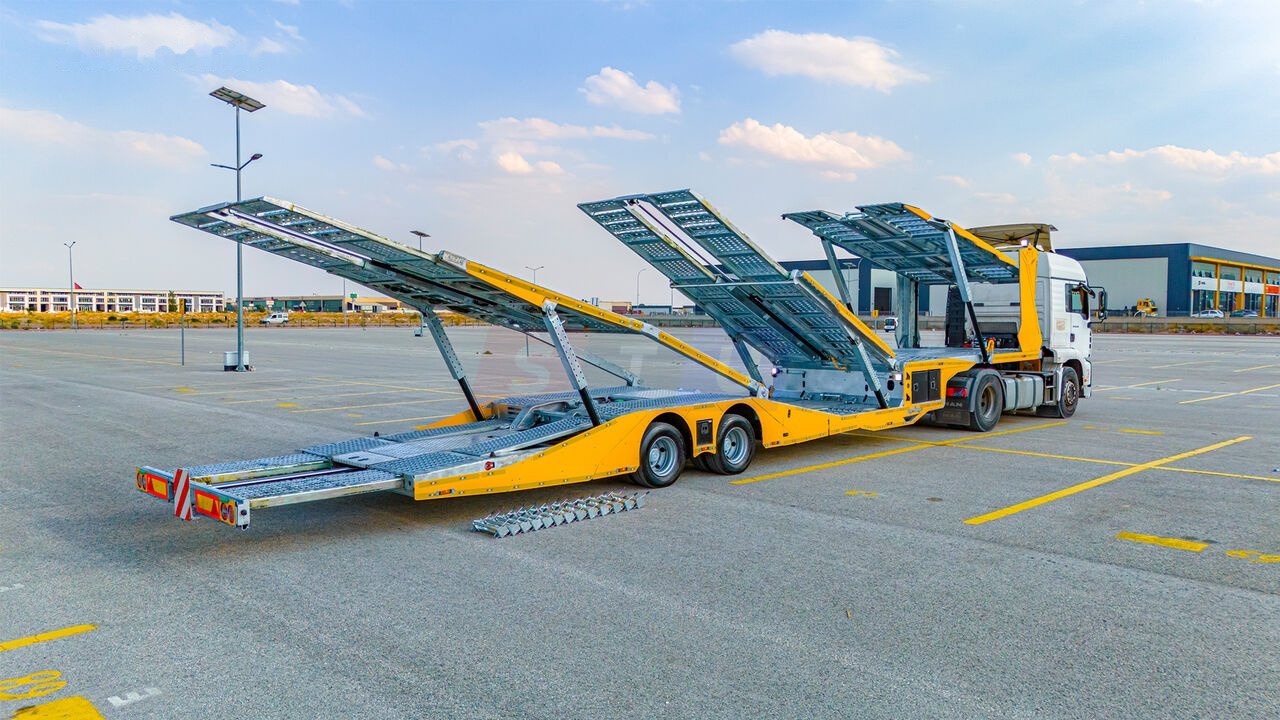

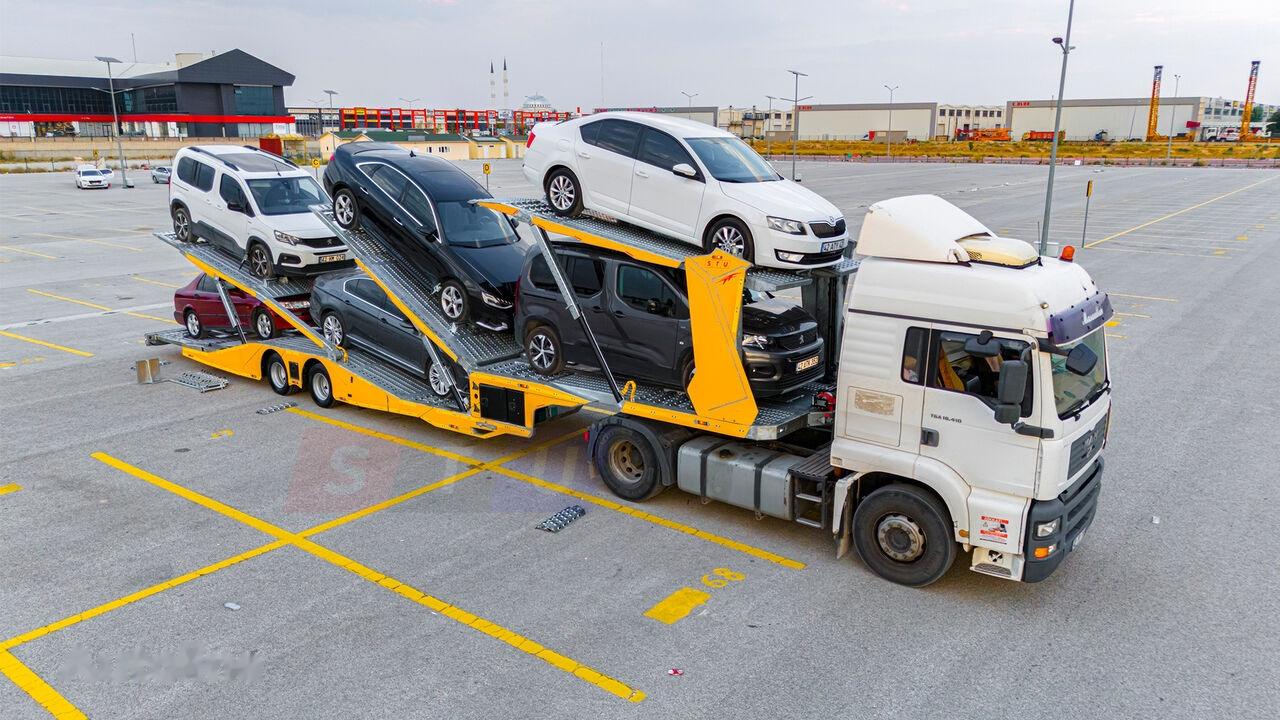

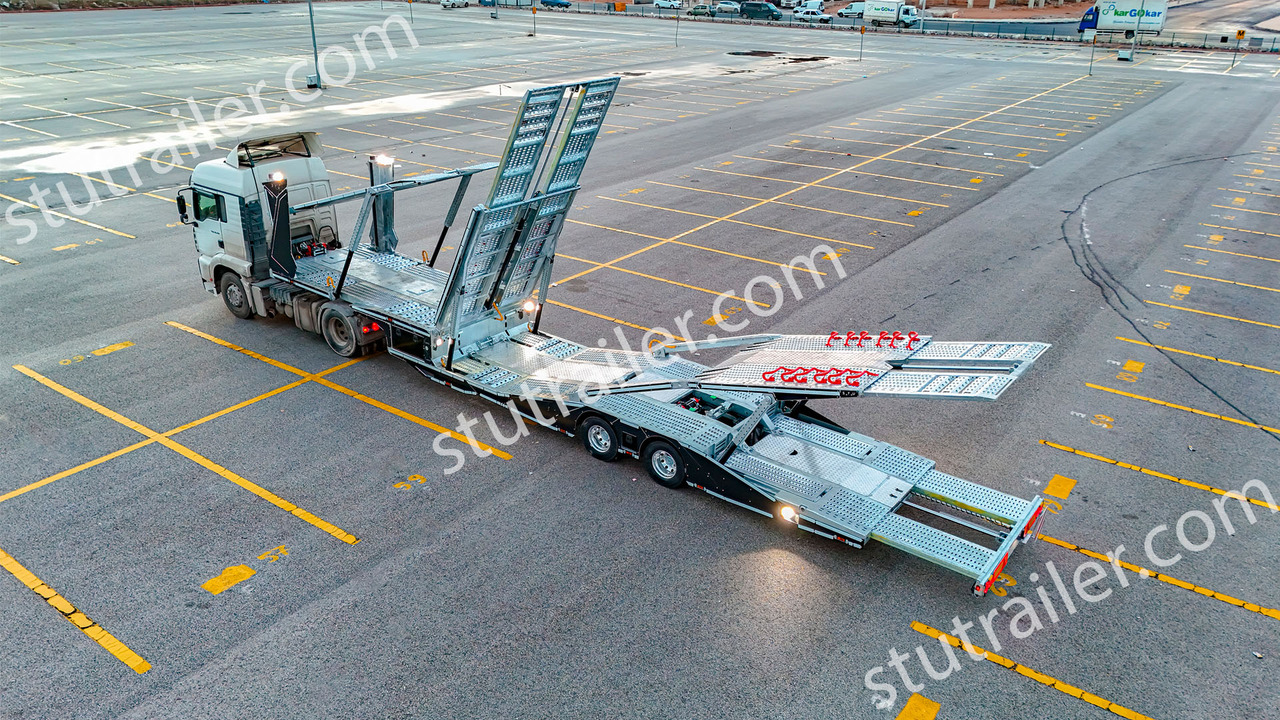

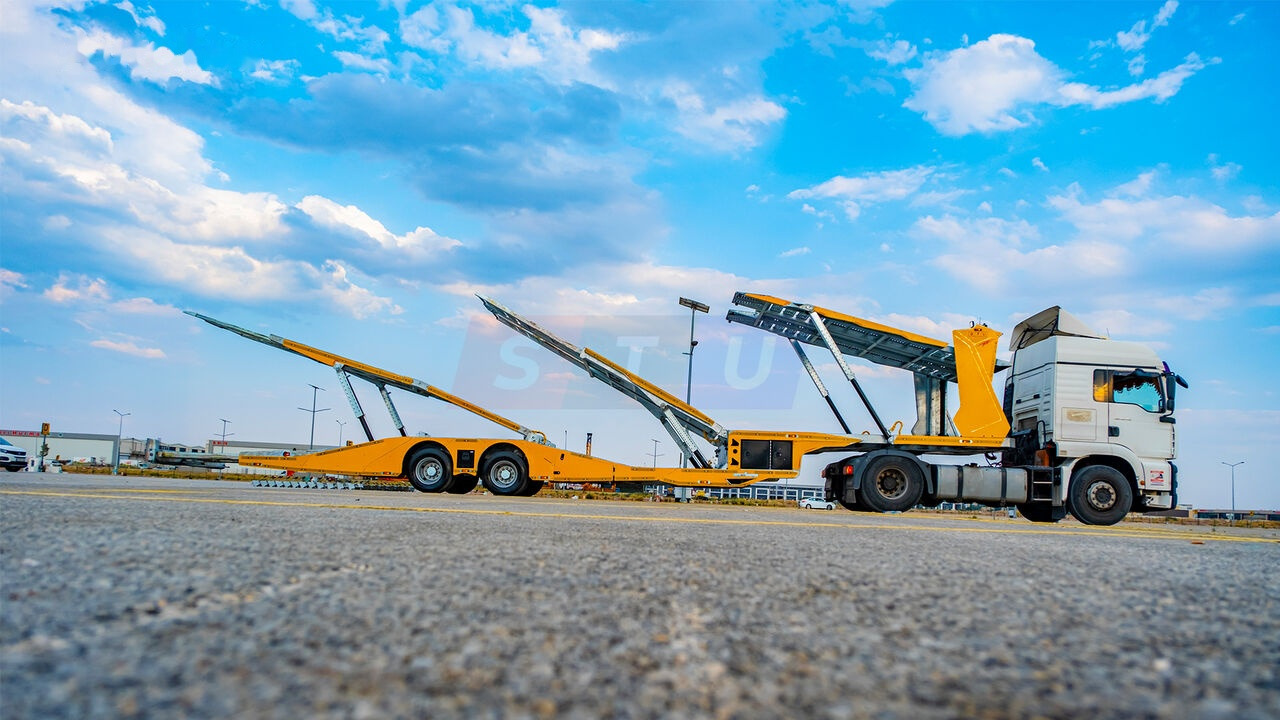

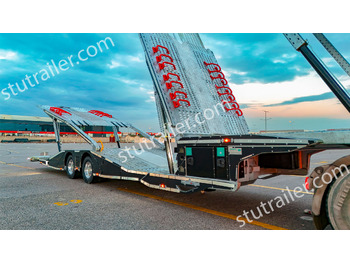

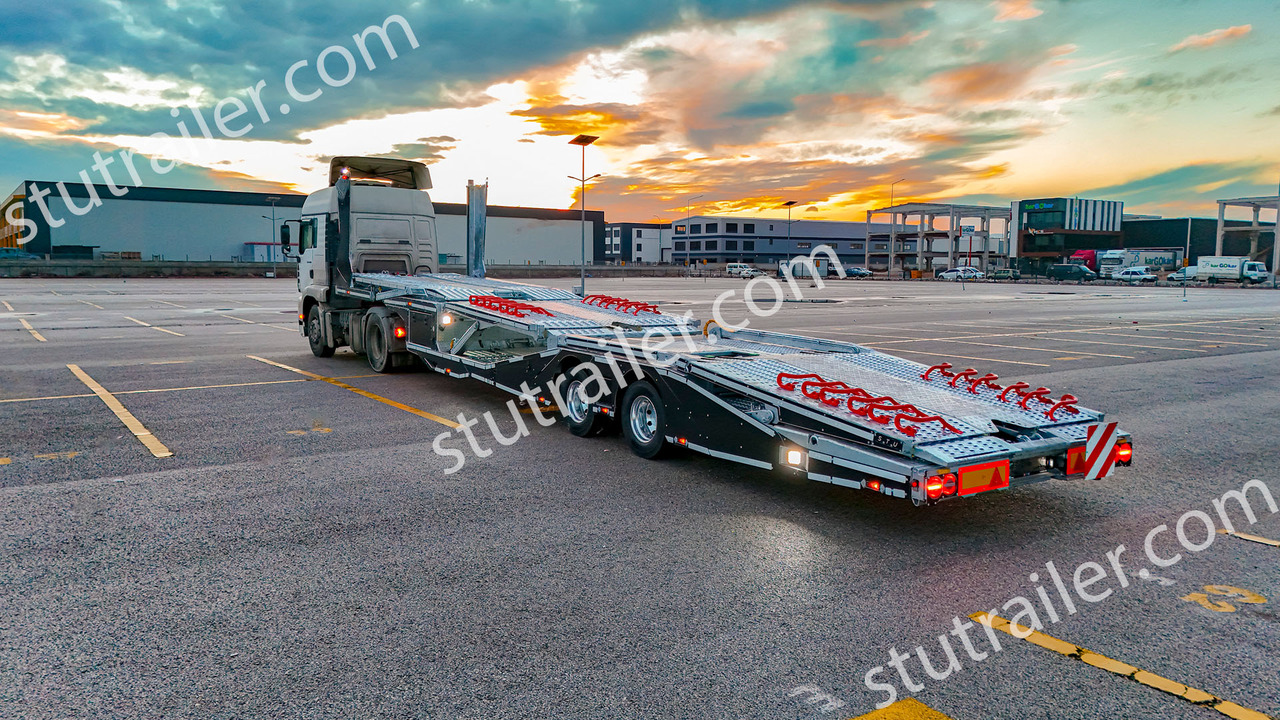

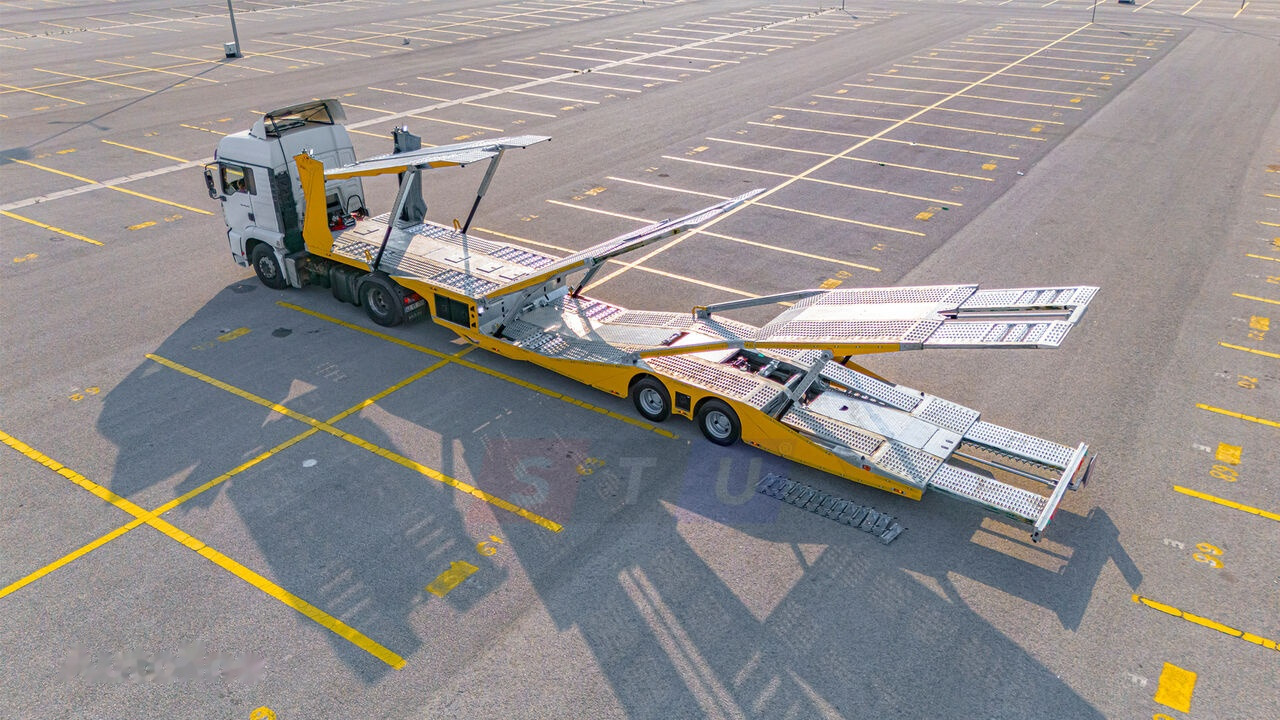

STU 6 CAR CARRIER TRAILER в лизинг

Chassis:

In accordance with the purpose of usage and it's capacity with safety transports, all trailers design of their constructions with high strenght cross members and productions are with high-tech welding machines. Quality S355J2+N steel grade will be used on our productions. Chassi completely galvanized.

Platform: The chassis superstructure will be 820x2000 balsted ramp. The middle part will be made of 2/3 aluminium checkered plate sheet.

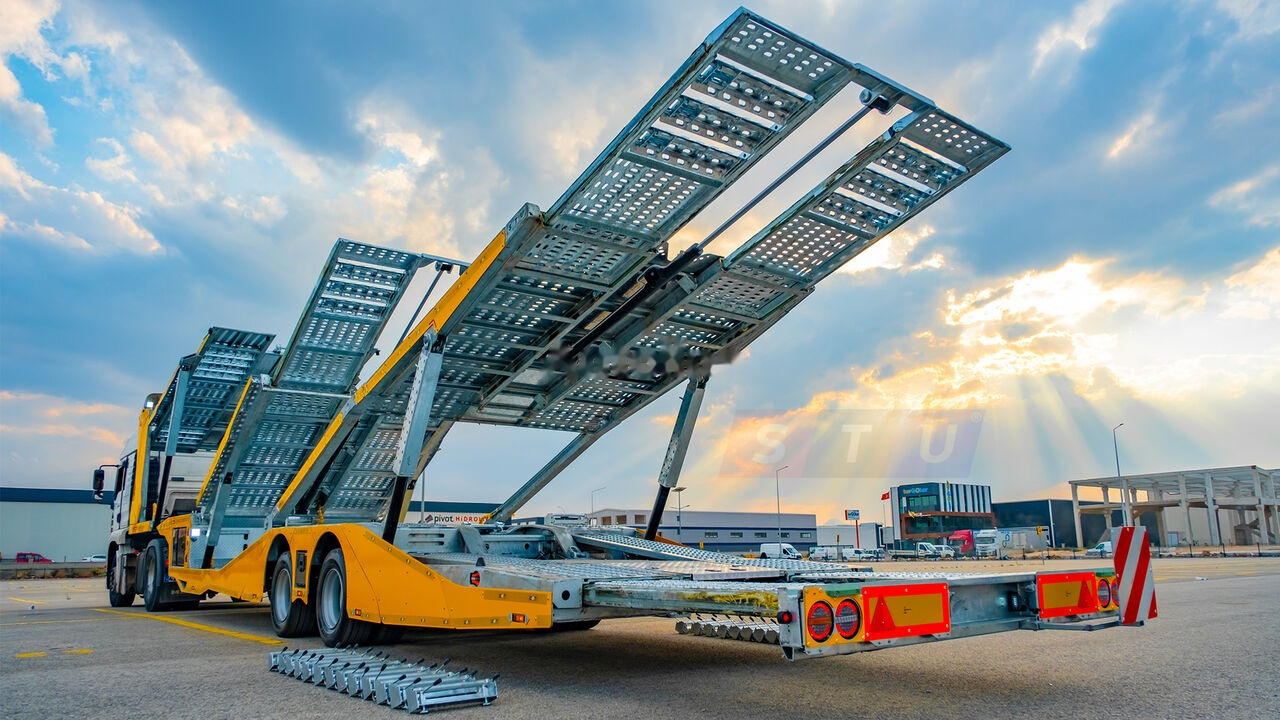

Platform 1: Moving platform with 2 hydraulic pistons with height adjustment with worm screw on gooseneck.

Platform 2: The platform is activated by 2 hydraulic pistons. It is also connected to the trailer main chassis with an articulated connection.

Platform 3: The platform is activated by 2 hydraulic pistons. It is also connected to the trailer main chassis with an articulated connection.

All hydraulic pistons will be controlled with mechanical controller + Teleradio Remote Control

Bumper: 1500 mm long and manually pulling with hydraulic power. Inner ramps will be aluminium and manually extension with hand.( End of Aluminium ramp will be like lowbed ramps )

Winch: 2x3500 kgs Hydraulic winch with 25 meters steel rope with oil tank and emergency stoppers.

Axles: 2x10 Tons Gigant Brand Drum axles with air spring suspensions drum brakes. There are brake shoes and heavy brake levers suitable for TSE norms. It is supplied with 4 pcs of air suspension.

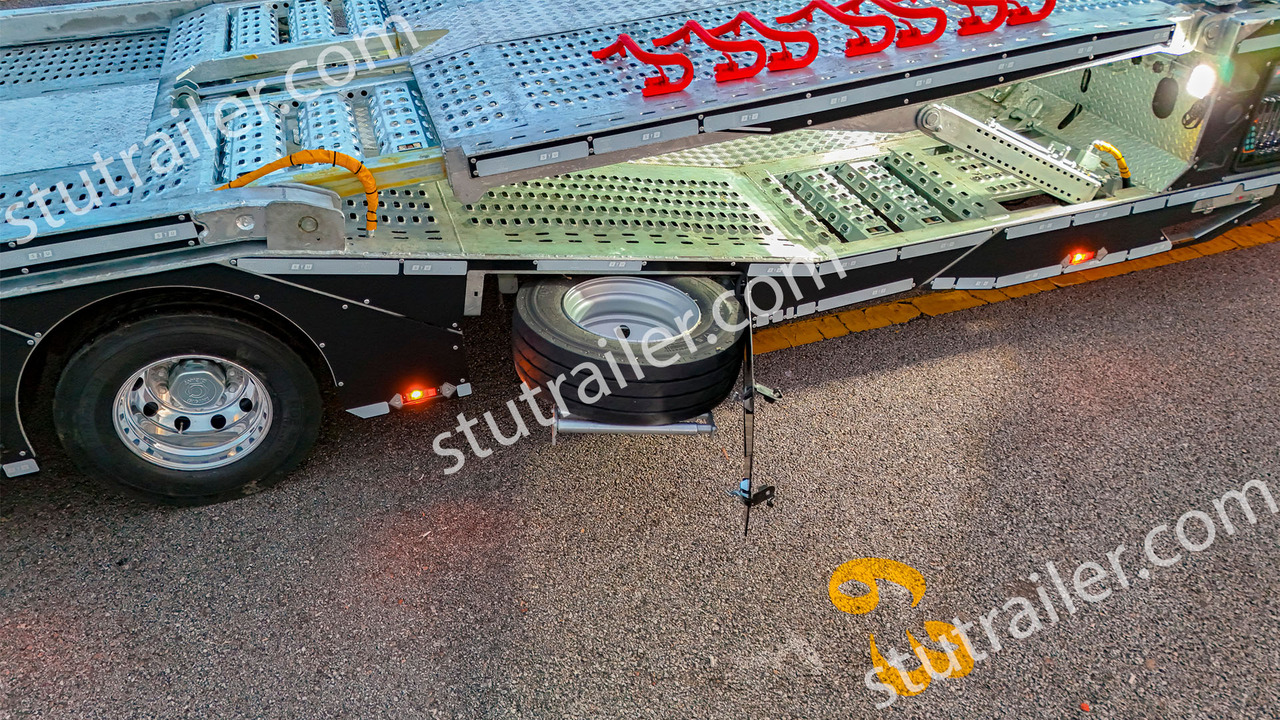

Tires: Goodyear Brand 8 pcs 245/70 R17,5’’ + 1 Spare Tyre holder with spare tyre

Rims: 8 pcs 22.5’’ Jantas or Jantsa Brand Rims

Brake System: Wabco 2S-2M EBS system

Electrical system: Dasteri Brand Led Dynamic Stop Lights 2x7 pin sockets - 24V according to standard in SAE, 4 x Night LED Lights,

King Pin: OMS Brand

Landing Gear: OMS Brand

Accessories and details:

Document Box,Control Panel, Emergency Brake, Aluminum bike impact absorber ( Or Closed sides )

2 x Tires Stopper, 4 x Roro Lashing Rings, 2x Plastic Toolbox, 2x Steel Tollbox, 26xMetal Tyre Stopper,
